See the link below for the final presentation on our project investigating phenotypic diversity and evolutionary potential in spatially heterogeneous environments:

https://docs.google.com/presentation/d/11RPEPLEZ1a__lk_rtvSlCzhDV_0ngbUv37txqTzd440/edit?usp=sharing


Progress Report Presentations

  See the link below for progress reports that tracked our work through out the semester:

https://docs.google.com/presentation/d/1Vkk0lbgAPgracuQ1ArhAcn7dVHLGe7E4U0jNpRx1hhw/edit?usp=sharing

Friday, February 28, 2014

Feb 5 Meeting Notes

Members Present: Emily Dolson, Audra Chaput, Sam Perez, Randy Olson
Objective: Get some of the logistical issues of implementing spatial heterogeneity figured out.

This post is rather late in coming. See Audra's post below for details on more recent results. We had two meetings on Wednesday, February 5th to discuss how to implement spatial heterogeneity.


From left to right: Randy Olson, Audra Chaput, Emily Dolson.
Photographer: Sam Perez


Lots of ideas being discussed.

Since gradient resources in Avida are implemented by circles, we decided to keep them that way. We decided that like Walker and Ofria (2012), we would get measurements of evolvability of a complex task (EQU) and Shannon diversity.

One research question that we are trying to test is whether greater diversity results in greater evolvability, or vice-versa. One way to test that is by incorporating spatial resource heterogeneity, which allows us to manipulate different configurations of resource availability to organisms. These configurations will have different potential evolvabilities across the environment (because the simpler resources are not always available everywhere to make the same evolutionary jumps that occur in standard Avida). We decided that resources in patches had to be randomized between runs. We also decided to have two or three resources per patch.

February 26th Update: Implementing spatial resource heterogeneity

We've been working on the extension phase of our project, implementing resource heterogeneity. We've decide to implement resource heterogeneity spatially, by adding patches of resources associated with each task into defined areas in the world. We will be increasing or decreasing the sizes of the patches, thus changing the amount resources overlap. Isolated, small sized patches will lead to complete spatial heterogeneity, while large, completely overlapping patches will lead to complete spatial homogeneity.

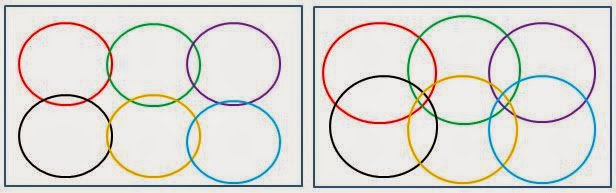

Figure 1. Abstract diagram of spatial resource heterogeneity. Each  colored circle represents a patch in the world where a given resource is available at a high inflow rate. The panel on the left represents, where the patches barely overlap, represents high spatial heterogeneity. The panel on the right, where patches overlap more and up to four resources are available in a given place in the world, represents lower spatial heterogeneity.


We will be investigating how spatial heterogeneity affects phenotypic diversity. We believe that competition for resources drives diversity, and that by limiting the resources to certain areas in the world, we will be creating niches for different types of organisms to thrive in. As such, we predict similar results to Walker and Ofria (2012), in that intermediate levels of spatial heterogeneity will lead to maximum phenotypic diversity. When resources are completely heterogeneous (i.e. resources are not found in the world in conjunction with any other resources), there will be too much competition and struggle just to survive, so new phenotypes will not arise. On the other end of the spectrum, when resources are completely homogeneous (i.e. all resources are found in conjunction with every other resource), there will be no pressure to specialize in a certain set of tasks, so only generalists will thrive, leading to reduced diversity as well.

We will also be investigating how spatial heterogeneity affects the evolvability of complex tasks, specifically, the EQU task in Avida. We predict that this evolvability with peak at intermediate spatial heterogeneity as well; however, it may be possible that evolvability follows a more linear trend with spatial heterogeneity, because as resources become more homogenously distributed, there will be more of the "building block" simpler task resources available to use to do the complex EQU task.

To implement spatial heterogeneity in Avida, we are using gradient resources. Each resource is associated with one of the nine computational tasks, Not, Nand, And, Xor, OrNot, Nor, Or, AndNot, Equals

Our resources world in avida is shown below:
Figure something. Spatial resource heterogeneity.

Isnt it cool. How'd we do that? We wrote a python script to randomly place each resource in two of the given patches. Here's that script below:


Figure something. Python script to randomly place resources in two patches in the world.



We are using the index of Shannon entropy of the resources in the world as a way to quantify spatial heterogeneity. To change the Shannon entropy of the resources, and thus the spatial heterogeneity, we are increasing or decreasing the radius of the patches.  Here's how we predict radius to affect entropy.
Figure of entropy vs radius.

Figure. Entropy vs patch radius.


Why? because uncertainty decreases with increasing radius until new niche is formed. Figure of heterogeneous patches to homogeneous patches.
Figure something. How overlap effects entropy.


So what have we successfully done so far? We have done, with non-depletable resources, radius 6,8,10,15,20,24,36,48,59. IE all along the entropy vs radius spectrum. Heres what we are finding, as we predicted.

Figure something. Entropy treatments (in terms of patch radius size). Top phenotypic diversity, bottom, evolve equals by update 100,000.


Next step? To make these resources depleteable within a patch. We believe this will increase competition and may lead to more diversity. Starting with inflow 100 across these different patch radii, may change the inflow rates around to see how effects.

Tuesday, February 25, 2014

February 25 Update: Replication complete


We have successfully completed the first phase of the project, replication of Walker and Ofria (2012).  See the results in Figures 1 and 2 below:

Figure 1. Replication of Walker and Ofria (2012) results for phenotypic diversity across resource inflow rate.
Panel A shows our replication, while panel B shows the original results. Similar to Walker and Ofria, we also found diversity to peak between inflow rates of 3-30. Our results were based on 30 replicate populations.


Figure 2. Replication of Walker and Ofria (2012) results for number of populations to evolve EQU task across resource inflow rate. Panel A shows our replication, while panel B shows the original results. Similar to Walker and Ofria, we also found diversity to peak between inflow rates of 10-300. Our results were based on 30 replicate populations.

We re-created the environment configurations in such a way as to reward the tasks based on the reward scheme outlined in Table 2 of Walker and Ofria (2012); in particular, we adjusted the value of each task to increase based on complexity of the task, and we also used the pow function to implement this reward exponentially. Figure 3 (below) shows the code for our environment configuration file:

Figure 3. Sample code for environment configuration file. Note, for each reaction, the value increases with increasing task complexity (from 1 to 5). Also, the <type=pow> command as well as <requisite:max_count=1>  command were specified to change how the task reward was implemented.
Other minor modifications were made to the configuration files to recreate the parameters outlined in Walker and Ofria (2012). The mutation rate per copy was set to 0.0025, 50 lines of "blank tape" nop-C were removed from the default organism, and the <PrintPhenotypeData> command was added to the events file so that the Shannon Diversity of Phenotypes (by task done) could be calculated for each replicate population. All other Avida settings were left at default specifications.


To analyze the data, a python script was generated to extract Shannon diversity of phenotypes from the "phenotype_count.dat" files for each replicate population and generate boxplots across each inflow rate treatment. The script was also written to take a count of every replicate population that performed the EQU task by update 100,000 and generate a histogram over each inflow rate treatment. A sample of our python code is shown in Figure 4 below:

Figure 4. Python script used to extract, compile and plot data from data files.
After completing this replication, we moved on to the second phase of the project, implementing spatially heterogeneous resources and studying their effect on phenotypic diversity and evolvability of complex tasks. For more information on the progress of this extension, see the next blog post!



February 25th Update: Replication Complete(!)


     We have successfully completed the first phase of this project, replication of  B. Walker, C Ofria (2012) Evolutionary Potential is Maximized at Intermediate Diversity Levels, Artiļ¬cial Life 13, 116-120.
